Category: PRO SOUND SYSTEMS, EMERGE

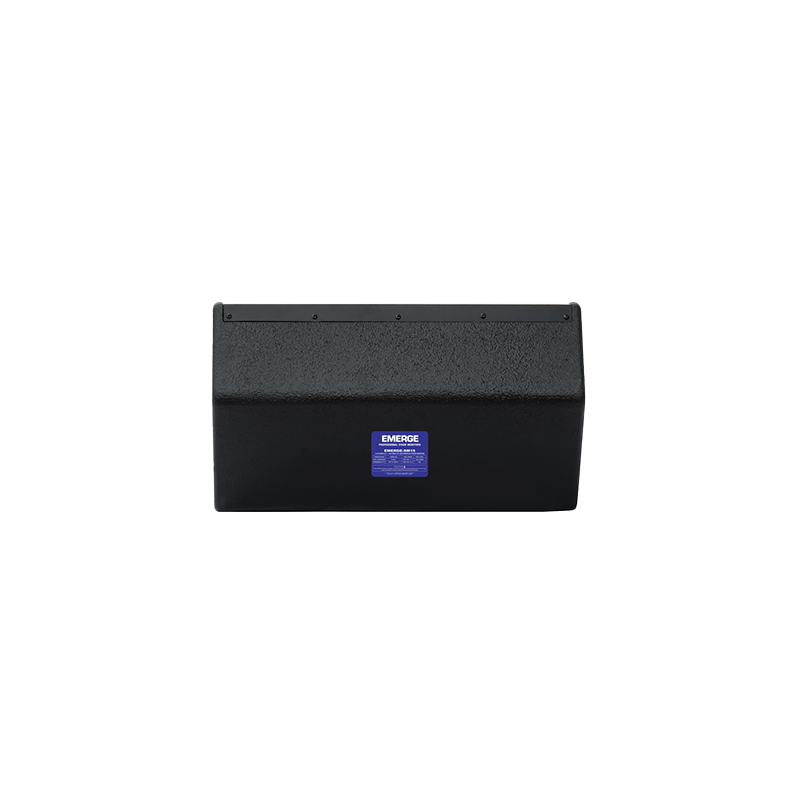

SM 15

Professional high performance 15-inch LF + 1.4-inch HF low profile stage monitor

Features

• New compact low-profile design
• Superb frequency response
• High gain before feedback
• 1000W 15-inch high power Italian (B&C) woofer
• 100W 1.4-inch exit pure titanium, large format compression driver
• Weather protected components and wear resistant ergonomic cabinet design for outdoor use
• Vented LF enclosure, bass down to 50Hz

The SM15 is an exceptional stage monitor designed to exceed the expectations of the most demanding performers and engineers.
This low-profile, high output stage monitor exhibits a smooth response, high gain before feedback, remarkable vocal clarity and very high SPL in an extremely compact design.

High frequencies are reproduced by a large format Italian 1.4-inch exit compression driver that is coupled to 60º x 90º horn.
This exceptional design provides a consistent frequency response and SPL at the optimum height, allowing the performer to move around the stage without any drop-in response or power.
Low-mid frequencies are reproduced by a high efficiency, high power handling 15-inch Italian (B&C) woofer featuring a 4-inch voice coil and weather protected cone for outdoor use.

• Professional high performance 15-inch LF + 1.4-inch HF low profile stage monitor
• 1000W 15-inch-high power Italian (B&C) woofer and 1.4-inch large format B&C compression driver
• Compact low-profile design

• Live sound, auditoriums, theatres
• Main vocal monitor
• High output monitor for drums and keyboards
• Front fill

TYPE Two-way compact (full-range)
FREQUENCY RANGE 50Hz-19kHz
DRIVERS LF | HF 1 x 15-inch reflex-loaded direct radiator | 1 x 1.4-inch exit HF compression driver horn loaded
RATED POWER 1000W AES, 4000W peak
SENSITIVITY 98dB
MAXIMUM SPL (CALCULATED @ IM) 128dB continuous, 134dB peak
NOMINAL IMPEDANCE 8 Ohms
DISPERSION (-6db) 50º horizontal x 90º vertical
ROTATABLE HORN -
CROSSOVER 1.2kHz passive
ENCLOSURE Trapezoid, BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel powder coated, 16G.
CONNECTORS 2 x Neutrik NL4
DIMENSIONS 817 mm x 406 mm x 480 mm (W x H x D)
WEIGHT  -- kg
