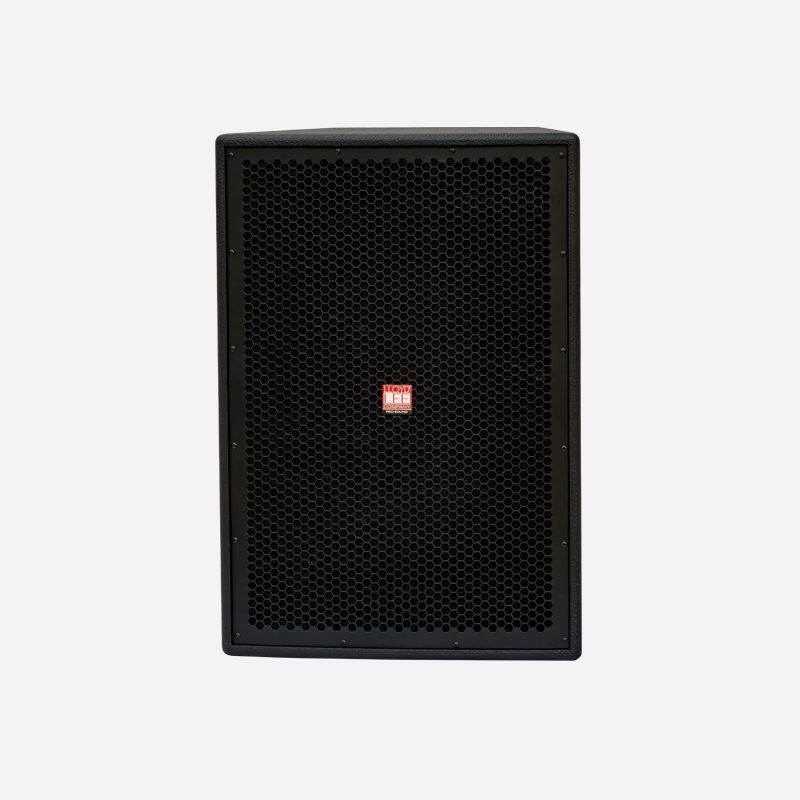

ELAN PRO SERIES MH7 PRO

 Very High Output 12 Inch MF + 1.4 Inch HF , Horn Loaded Mid High Speaker System



Features

  • Very long throw and high power capability
  • 8 ohms mid and high frequency transducers
  • 1 x 12 inch high performance mid-section
  • 1 x 1.4 inch exit high efficiency compression driver selected for extended and precise high frequency performance.
  • Long throw capability
  • 60°H x 30°V coverage pattern.



Category:

The MH7 pro is a horn loaded bi-amplified mid-high loudspeaker system like the successful MH1 speaker. The MH7 pro has an extended frequency response (down to 100Hz) unlike other standard 250Hz response of commonly used mid speakers.



The MH7 pro possesses the similar throw and coverage like the MH5, along with further improvement in the mid-high frequencies for better vocal reproduction and extended frequency range. It can be used directly with a sub-woofer, without the need for an additional low-mid speaker.



Driver technology has been optimized for lighter weight and maximum acoustic output in a compact enclosure. An Italian high efficiency custom built 8 ohms 12 inch mid-bass transducer is used, for a 2dB average increase in output as compared to the MH1. The 12 inch mid-bass transducer is coupled to a high performance reflex mid-bass horn which extends the usable frequency down to 100 Hz. The High frequency section employs a high efficiency 8 ohms 1.4 inch exit large format compression driver using a 3 inch Titanium diaphragm, for excellent frequency response and power handling. The 1.4 inch exit high efficiency compression driver is coupled to a horn with a constant coverage pattern to ensure smooth and even arraying in all situations.

Applications

  • Live Sound (Small to Large scale sound reinforcement)
  • Auditorium
  • Houses of Worship
  • Club sound
  • Concert Halls
  • Stadiums

Technical Specification

TYPE  Two-way mid high horn loaded
FREQUENCY RANGE  100Hz-19Hz_+ 10dB
LMF SECTION  1 X 12 INCH  REFLEX HORN LOADED
HF SECTION  1 x 1.4 inch exit HF compression driver, horn loaded
RATED POWER  LMF :500W AES, 2000W peak

HF : 120W AES, 400W peak

SENSITIVITY  LMF :103dB

HF : 110dB

MAXIMIUM SPL (CALCULATED @ IM)  LMF :125dB continuous ,131 dB peak

HF:129dB continuous,135dB peak

NOMINAL IMPEDANCE  LMF : 8 ohms

HF: 8 ohms

DISPERSION (-6db)  600 horizontal x 400 vertical
CROSSOVER  1.9 kHz active
ENCLOSURE  Trapezoid , BWP ply construction
FINISH  Lloyd Lee Co. textured paint
PROTECTIVE GRILLE  Perforated steel Power Coated,16G

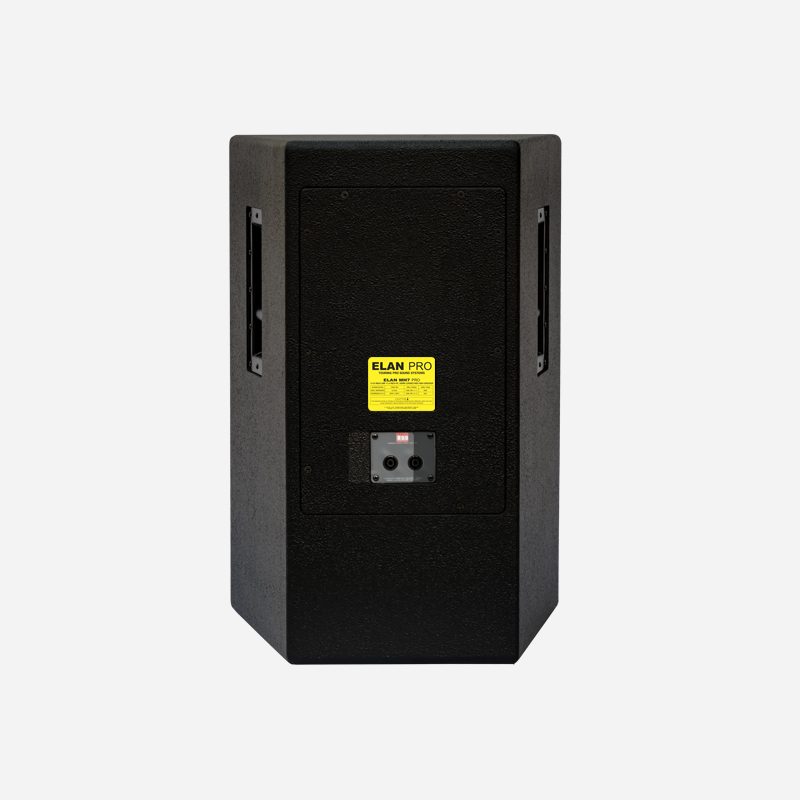

CONNECTORS  2 x Neutrik NL4
DIMENSIONS
WEIGHT  — kgs

Download
