EMERGE SM 12

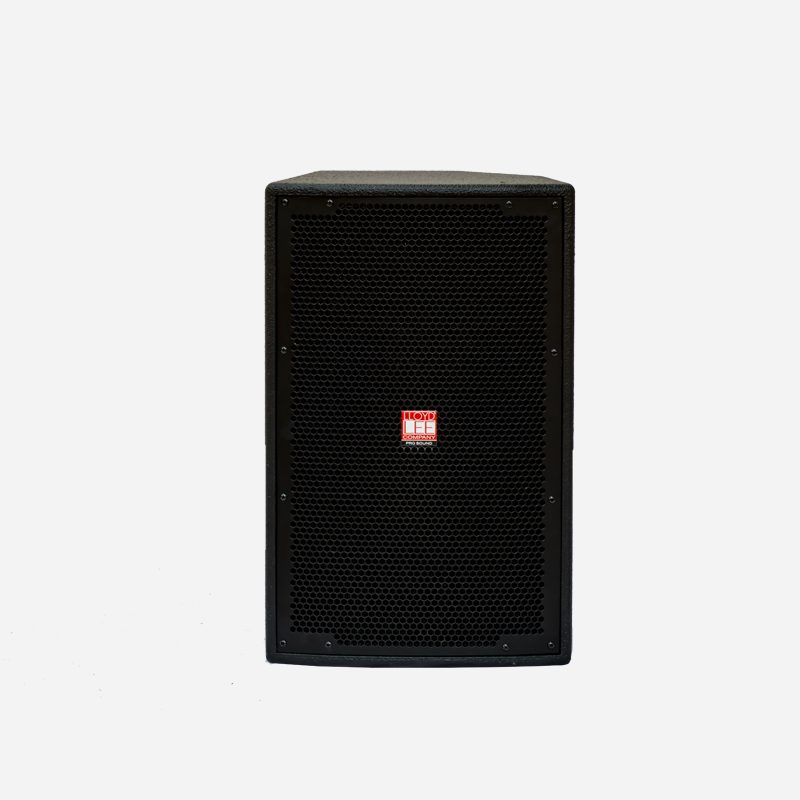

Professional High Performance 12 Inch LF + 1.4 Inch HF Low Profile Stage Monitor



Features
• New Compact low-profile design
• Superb frequency response
• High Gain before Feedback
• 700W 12-inch high power Italian (B&C) woofer
• 80W 1.4 inch exit pure titanium, large format compression driver
• Weather protected components and Wear resistant ergonomic cabinet Design for out-door use
• Vented LF enclosure, bass down to 59Hz.

Category:

The SM15 and SM12 are high performance stage monitors designed to exceed the expectations of the most demanding performers and engineers. The SM15 and SM12 low-profile, high output design exhibits a smooth response, high gain before feedback, remarkable vocal clarity and very high SPL in an extremely compact design.



The SM 15 used a large format Italian 1.4-inch exit compression driver that’s coupled to 60º x 90º horn for high frequency reproduction. This exceptional design provides a consistent frequency response and SPL at the optimum height, allowing the performer to move around the stage without any drop-in response or power. Low-mid frequencies are reproduced by a high efficiency, high power handling 15inch Italian (B&C) woofer featuring a 4-inch voice coil and weather protected cone for outdoor use.



The SM 12 used Italian 1.4-inch exit compression driver that’s coupled to 60º x 90º horn for high frequency reproduction. This exceptional design provides a consistent frequency response allowing the performer to move around the stage. Low-mid frequencies are reproduced by high power handling 12inch Italian (B&C) woofer featuring a 3-inch voice coil and weather protected cone for outdoor use.

Applications

  • Live sound, Auditorium, theatres.
  • Main Vocal Monitor
  • High Output Monitor for Drums and Keyboards
  • Front Fill

Technical Specification



TYPE  Two-way compact (full-range)
FREQUENCY RANGE 50Hz-19kHz
DRIVERS    LF 1 x 12inch reflex-loaded direct radiator
                      HF 1 x 1.4-inch exit HF compression driver horn loaded
RATED POWER 700W AES, 2800W peak
SENSITIVITY 101dB
MAXIMIUM SPL (CALCULATED @ IM) 126dB continuous, 130dB peak
NOMINAL IMPEDANCE 8ohms
DISPERSION (-6db)

Rotatable Horn

50º horizontal x 90º vertical

CROSSOVER 1.2kHz passive
ENCLOSURE Trapezoid, BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated Steel Powder Coated, 16G.

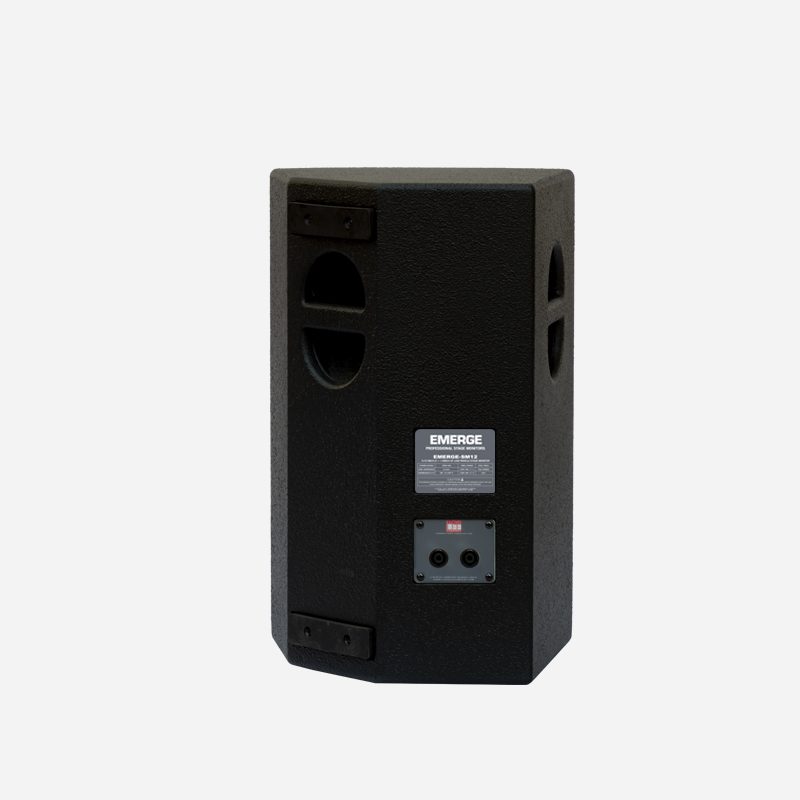

CONNECTORS 2 x Neutrik NL4
DIMENSIONS — mm x — mm x — mm ( W x H x D)
WEIGHT  — kg
