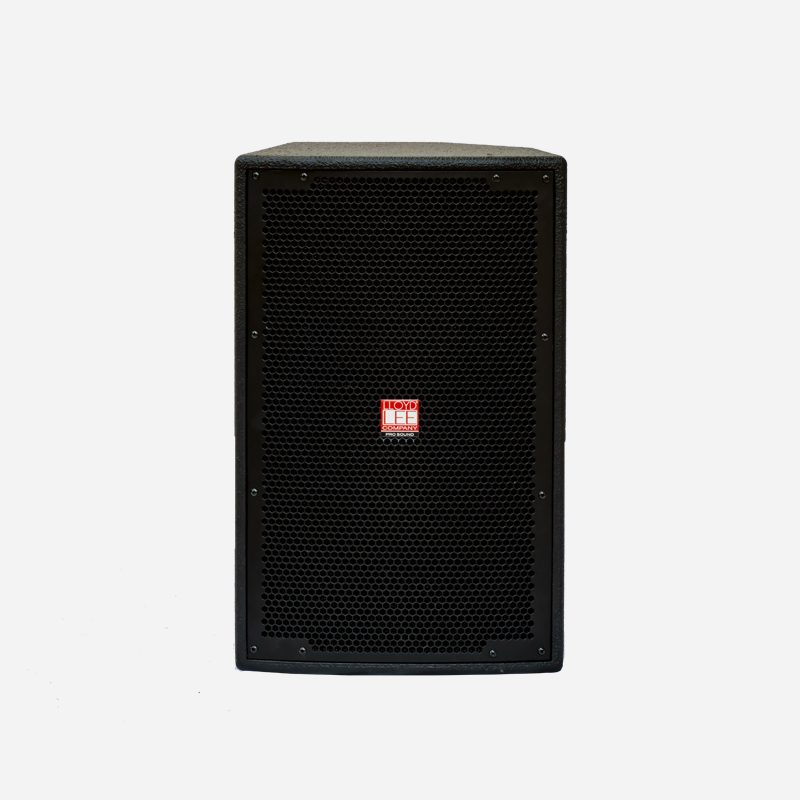

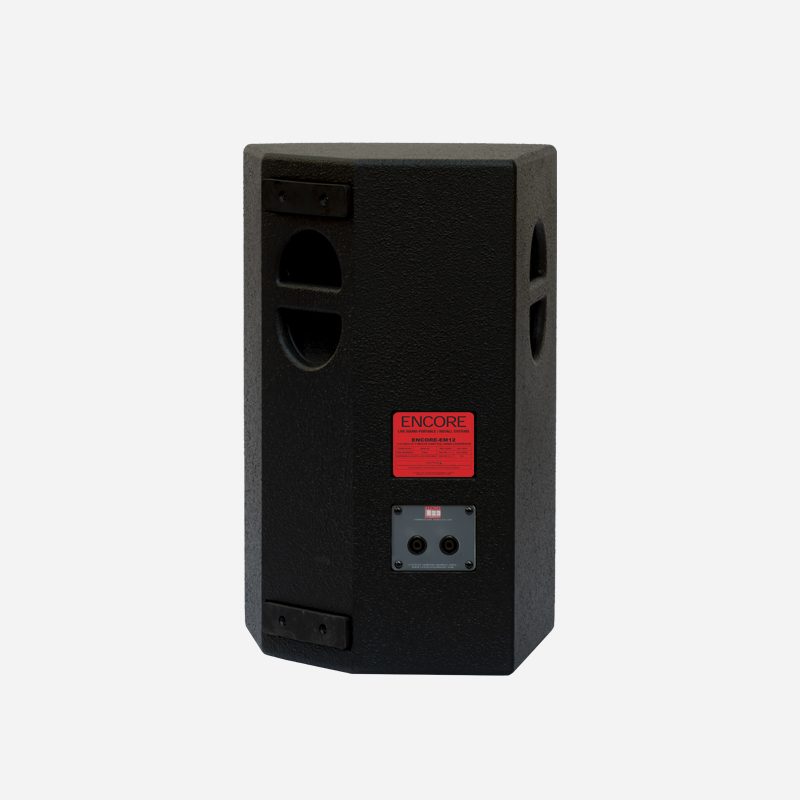

ENCORE SERIES EM 12

High Output Compact 12 Inch LF + 1 Inch HF 2 Way Full-Range Loudspeaker



Features

  • Two-Way High-Output Full-range
  • Italian 1 inch exit HF compression driver
  • Italian 12 inch LF transducer with weather protected cone and plates for outdoor use
  • Advanced crossover with HF protection
  • Unique rotatable 60° x 40° Constant-directivity horn
  • 400W continuous, 1600W peak power handling
  • Ultra-compact low profile 5-side multipurpose design with monitor slant
  • Integral M8 threaded points for suspension (optional)
  • Vented LF enclosure



Category:

The EM 12 is an ultra-compact, low profile loudspeaker designed for main system or stage monitor applications. Employing an incredibly low-distortion Italian 12 inch woofer, the EM12 will astound you with performance that blows away ordinary 12 inch speakers. A specially designed crossover network integrates the speaker with an Italian 1 inch pure titanium HF compression driver. The driver is coupled to a unique 60° x 40° constant directivity horn that’s rotatable for precise and even coverage depending on application. HF overload protection is provided for reliable, long term operation.



The EM 12 Compact cabinet design, allows the system to be tucked tightly against a ceiling for low-profile applications. The EM 12 can be combined with ES 15 or ES 18 subwoofer for incredible full range sound. The EM 12 is an ideal solution for events like conferences, parties, club sound, installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stages with bands as stage monitors.

Applications

  • Live Sound
  • Auditorium
  • Houses of Worship
  • Club sound
  • Various Installations

Technical Specification

TYPE Two-way Full range /monitor
FREQUENCY RANGE 50Hz-18kHz
DRIVERS    LF 1  x 12inch reflex-loaded direct radiator
                     HF 1 x 1 inch exit HF compression driver horn loaded
RATED POWER 400W AES, 1600W peak
SENSITIVITY 98dB
MAXIMIUM SPL (CALCULATED @ IM) 119dB continuous, 125dB peak
NOMINAL IMPEDANCE 8ohms
DISPERSION (-6db)

Rotatable Horn

60º horizontal x 40º vertical

YES

CROSSOVER 1.6kHz passive
ENCLOSURE Trapezoid , BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated Steel Powder Coated, 16G .
CONNECTORS 2 x Neutrik NL4
DIMENSIONS 386 mm x 637 mm x 320 mm  ( W x H x D)
WEIGHT 19 Kg
