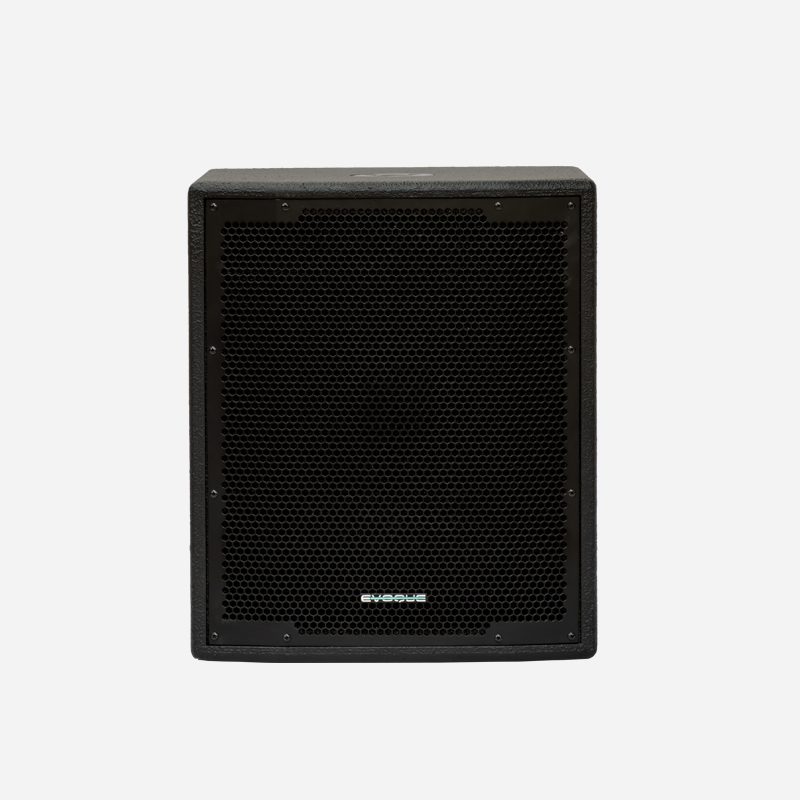

EVOQUE SERIES SUBWOOFER 15

 Compact High Output 15 inch Subwoofer



Features

  • Very Compact design
  • 600W continuous, 2400W peak power handling
  • Direct radiating Vented LF enclosure, Solid bass down to
  • 15 inch low distortion B&C LF transducer with weather protected cone and plates for outdoor use.
  • Pole mount to elevate a two-way loudspeaker



Category:

The with EVOQUE SUBWOOFER 15 is a compact yet powerful single 15 inch Subwoofer designed to complement the full range products in the Elite series.



The EVOQUE SUBWOOFER 15 employs a powerful 15 inch 600W continuous power handling woofer. Reflex loaded woofer orientation has been used to ensure excellent low frequency performance for a very compact enclosure. The SUBWOOFER 15 has been specifically designed for applications where size and weight are an important factor. The enclosure is equipped with 1-3/8 inch stand mount on the top for use with full range cabinets, without the need for extra mounting stands.



The EVOQUE SUBWOOFER 15 is the perfect companion sub to the EVOQUE SATELLITE 8 and 10 for compact and portable performance. The EVOQUE SUBWOOFER 15 is capable of delivering outstanding power and an extended response down to 32Hz. When used with the Elite full-range speaker systems, the EVOQUE SUBWOOFER 15 provides high output sound reinforcement for clubs, large halls, or outdoor events in a compact package which can be moved easily by a one-person crew.

Applications

  • Auditorium
  • Club sound
  • Various Installations

Technical Specification

TYPE Subwoofer
FREQUENCY RANGE 41Hz-120Hz
DRIVER    LF 1 x 15 inch, reflex-loaded direct radiator
RATED POWER 600W AES, 2400W peak
SENSITIVITY 98dB
MAXIMIUM SPL (CALCULATED @ IM) 120dB continuous, 126dB peak
NOMINAL IMPEDANCE LF: 8ohms
ENCLOSURE Rectangular, BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel Powder Coated, 16G .
CONNECTORS 2 x Neutrik NL4
DIMENSIONS — mm x — mm x — mm  ( W x H x D)
WEIGHT — Kg
