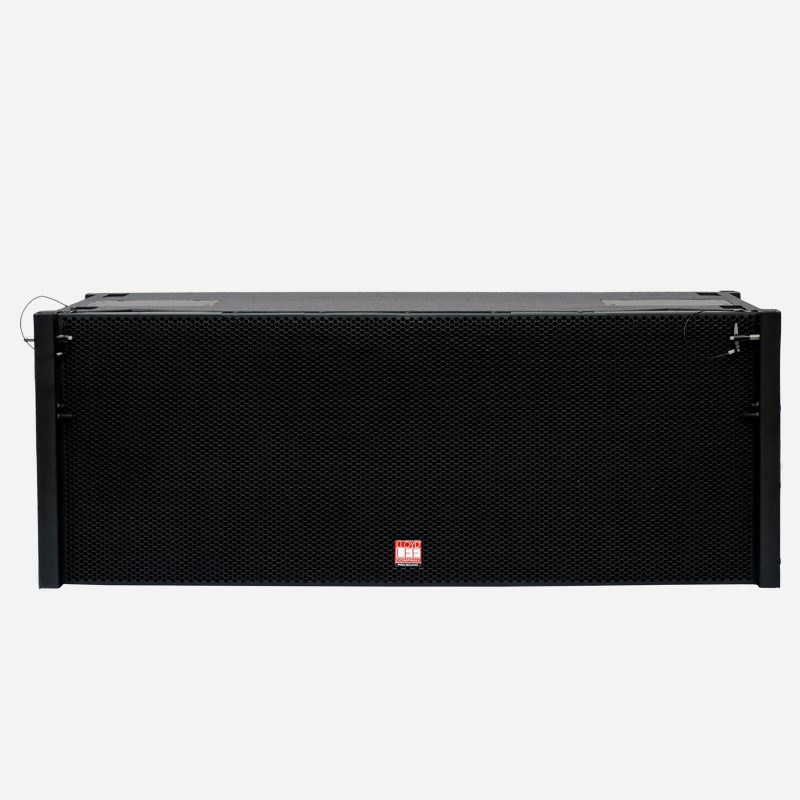

EXTREME SERIES ULTRA LINE

 Extremely High Output Array-able Mid High Speaker System



Features

  • Very high acoustic output for very compact enclosure
  • Specialized mid and high frequency transducers
  • 4 x 12-inch-high performance mid-bas section
  • 8 x1.4 inch exit high efficiency Neodymium compression drivers for precise performance
  • Very Long throw
  • 100°H x 10°V coverage pattern



Category:

ULTRA LINE was designed as compact, array able mid high system for large scale sound reinforcement. ULTRA LINE is a far throw, compact 2 way mid high system in a rectangular flyable enclosure with a 90° H x10° V coverage pattern.



The horns and drivers were designed as part of the RED development and represent a step forward in state of heart loudspeaker design in terms of high acoustic output.



ULTRA LINE possesses excellent throw and coverage like the famous EXTREME RED loudspeaker, along with further enhancement in driver technology for higher power handling and very high SPL.

Applications

  • Live Sound (Medium to Large scale sound reinforcement)
  • Concert Halls, Stadiums

Technical Specification

TYPETwo-way mid-High horn loaded
FREQUENCY RANGE120Hz-18kHz
DRIVERS    LF4 x 12 inch Horn loaded
                      HF8 x 1.4 inch exit HF compression driver horn loaded
RATED POWERLMF 2400W AES, 8000W peak

HF 800W AES, 3600W peak

SENSITIVITYLMF 110 dB

HF 117 dB

MAXIMIUM SPL (CALCULATED @ IM)LMF 141dB continuous, 147dB peak

HF    148dB continuous, 154dB peak

NOMINAL IMPEDANCELMF 2x 8 ohms

HF 2x 8 ohms

DISPERSION (-6db)100º horizontal x 10º vertical
CROSSOVER1.2kHz active
ENCLOSURERectangular, BWP ply construction
FINISHLloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLEPerforated Steel Powder Coated, 16G .

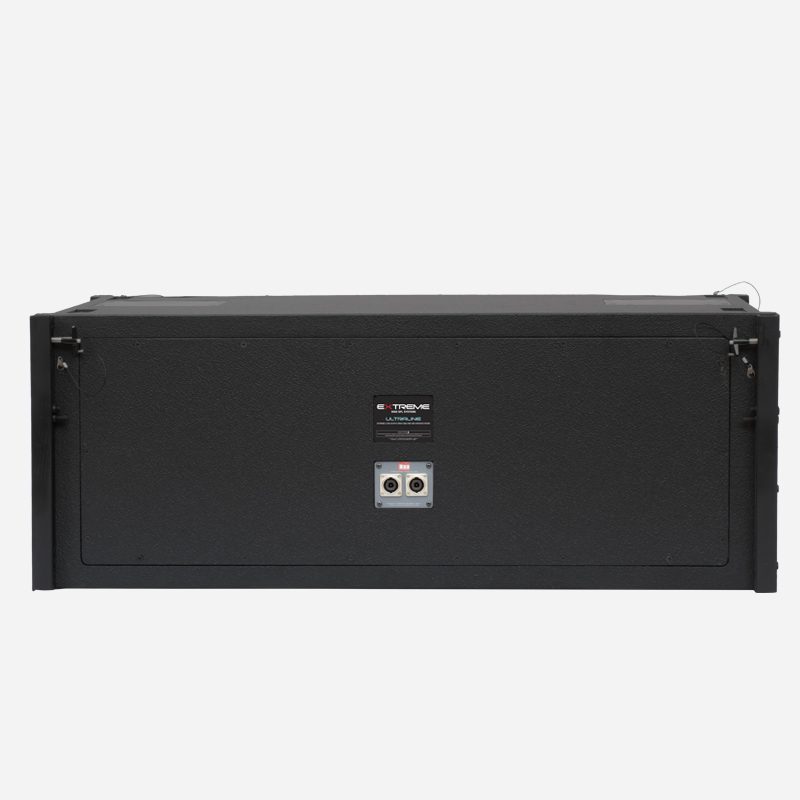

CONNECTORS2 x Neutrik NL8
DIMENSIONS— mm x — mm x — mm  ( W x H x D)
WEIGHT— Kg
