ENCORE SERIES EM 15

 High Output Compact 15 Inch LF + 1 Inch HF 2 Way Full-Range Loudspeaker



Features

  • Two-Way High-Output Full-range
  • Italian (B&C) 1 inch exit pure titanium HF compression driver
  • Italian (B&C) 15 inch LF transducer with weather protected cone and plates for outdoor use
  • Advanced crossover with HF protection
  • Unique rotatable 60° x 40° constant-directivity horn
  • 600W continuous, 2000W peak power handling
  • Ultra-compact low profile 5-side multipurpose design with monitor slant
  • Integral M8 threaded points for suspension (optional)
  • Vented LF enclosure, Solid bass down to 55Hz





Category:

The EM15 is an ultra-compact, low profile loudspeaker designed for main system or stage monitor applications. EM15 employs a long excursion Italian (B&C) 15 inch woofer that delivers rock-solid bass response and excellent midrange clarity with exceptional reliability. A specially designed crossover network integrates the speaker with an Eighteen Sound 1 inch pure titanium HF compression driver. The driver is coupled to a unique 60° x 40° constant directivity horn that is rotatable for precise and even coverage depending on application. HF overload protection is provided for reliable, long term operation.



The EM15 is designed for medium-throw applications, monitors or drum fills and can be combined with the ES18 for breath-taking full-range sound. The EM15 is an ideal solution for events like conferences, parties, club sound, installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stage with bands as stage monitors.

Applications

  • Live Sound
  • Auditorium
  • Houses of Worship
  • Club sound
  • Various Installations

Technical Specification

TYPE Two-way compact/monitor  (full-range)
FREQUENCY RANGE 41Hz-19kHz
DRIVERS    LF 1  x 15inch reflex-loaded direct radiator
                      HF 1 x 1 inch exit HF compression driver horn loaded
RATED POWER 600W AES, 2000W peak
SENSITIVITY 100dB
MAXIMIUM SPL (CALCULATED @ IM) 123dB continuous, 129dB peak
NOMINAL IMPEDANCE 8ohms
DISPERSION (-6db)

Rotatable Horn

60º horizontal x 40º vertical

YES

CROSSOVER 1.6kHz passive
ENCLOSURE Trapezoid , BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover

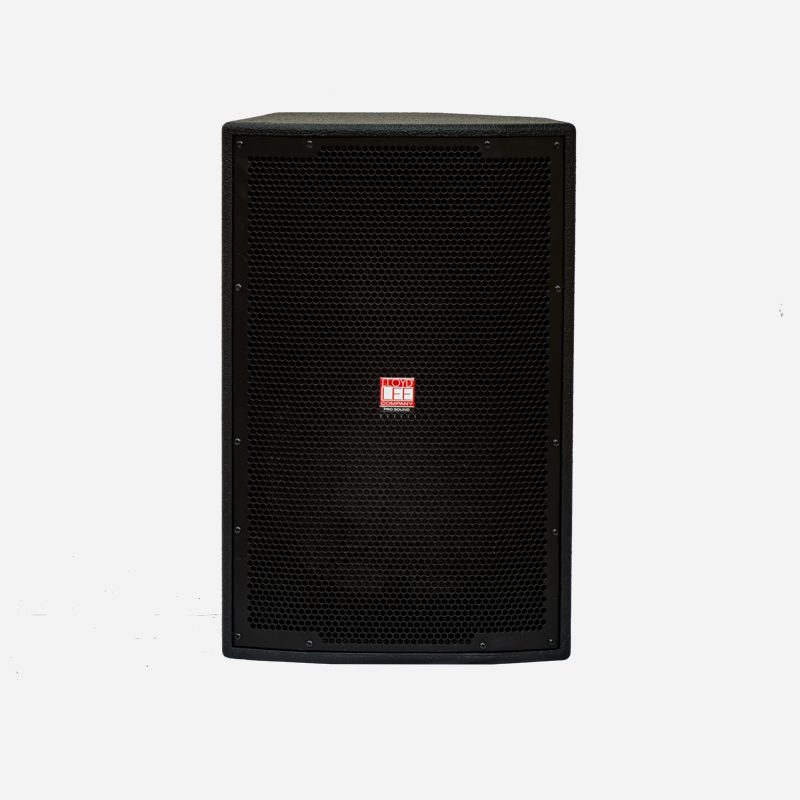

PROTECTIVE GRILLE Perforated Steel Powder Coated, 16G .

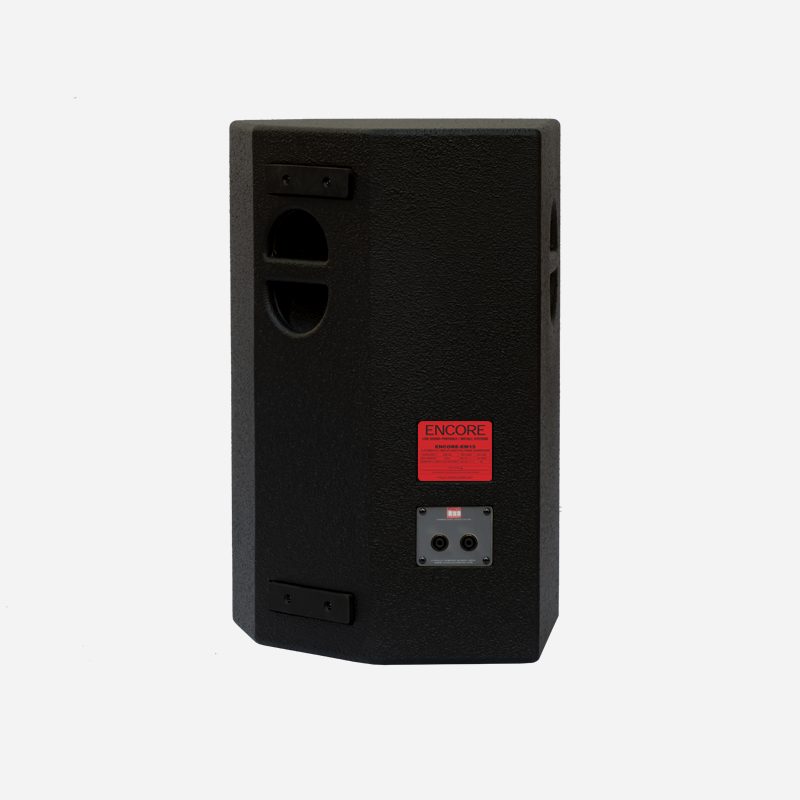

CONNECTORS 2 x Neutrik NL4
DIMENSIONS 455 mm x 720 mm x 355 mm  ( W x H x D)
WEIGHT — Kg
