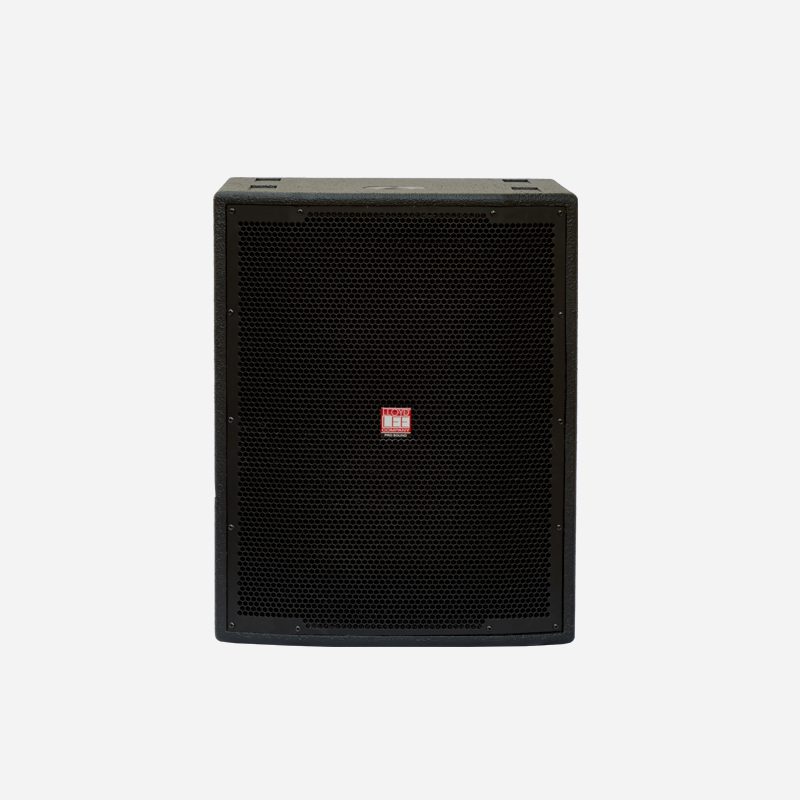

ENCORE SERIES ES18

Compact High Output 18 Inch Subwoofer



Features

  • Very Compact design
  • 1000W continuous, 4000W peak power handling
  • Direct radiating Vented LF enclosure, Solid bass down to 30Hz.
  • 18-inch low distortion Italian LF transducer with weather protected cone and plates for outdoor use.
  • Pole mount to elevate a two-way loudspeaker



Category:

The ES18 is a compact yet powerful single 18-inch Subwoofer designed to complement the full range products in the Encore series.



The ES18 employs with a powerful 18-inch B&C 1000W continuous power handling (4000-watt peak). Reflex loaded woofer orientation has been used to ensure excellent low frequency performance for a very compact enclosure. The E1 has been specifically designed for applications where size and weight are an important factor. The enclosure is equipped with 1-3/8-inch stand mount on the top for use with full range cabinets, without the need for extra mounting stands.



The ES18 is the perfect companion sub to the EM12, EM15 and EM15HP for compact and portable performance. The ES18 is capable of delivering outstanding power and an extended response down to 32Hz. When used with the Elite full-range speaker systems, the ES18 provides high output sound reinforcement for clubs, large halls, or outdoor events in a compact package which can be move easily by a one-person crew.

Applications

  • Live Sound
  • Auditorium
  • Houses of Worship
  • Club sound
  • Various Installations

Technical Specification

TYPE Subwoofer
FREQUENCY RANGE 30Hz-250Hz
DRIVER    LF 1 x 18-inch, reflex-loaded direct radiator
RATED POWER 1000W AES, 4000W peak
SENSITIVITY 98dB
MAXIMIUM SPL (CALCULATED @ IM) 125dB continuous, 131dB peak
NOMINAL IMPEDANCE LF: 8ohms
ENCLOSURE Rectangular , BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel Powder Coated, 16G .
CONNECTORS 2 x Neutrik NL4
DIMENSIONS 460 mm x 769 mm x 755 mm  ( W x H x D)
WEIGHT 41 kg
