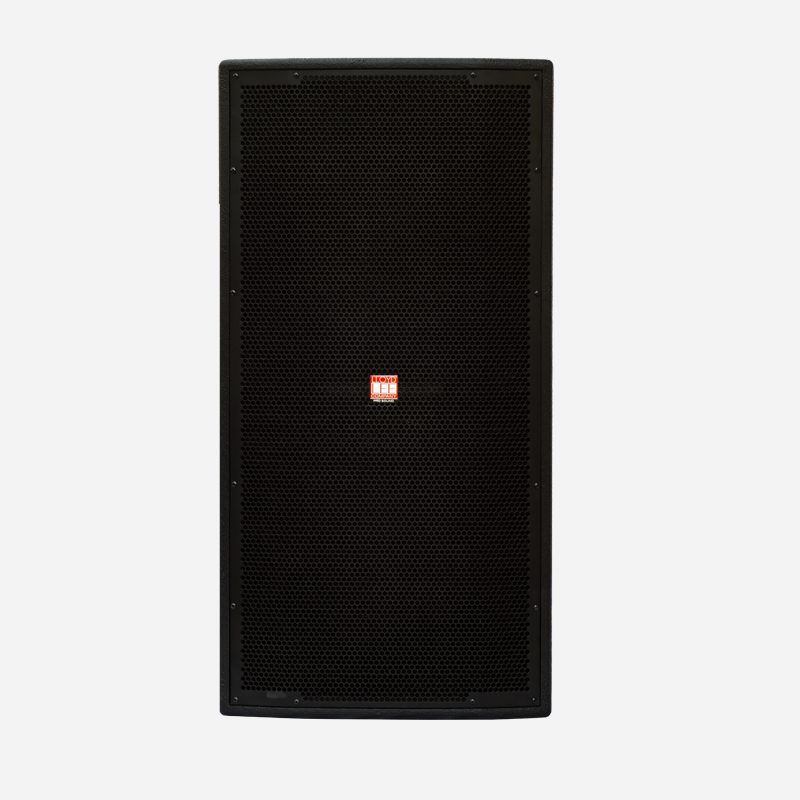

ENCORE SERIES ES28

Compact High Output 2x 18 Inch Subwoofer



Features

  • Direct radiating Vented LF enclosure, Solid bass down to 28Hz
  • 2000W continuous, 8000W peak power handling
  • 2 x 18 inch low distortion Italian LF transducers with weather protected cone and plates for outdoor use
  • Very High SPL coupled with clean and precise low frequency
  • Ideal for line array system
  • Compact and easy to transport



Category:

The ES28 is a dual 18 inch subwoofer with 2000W continuous and 8000W peak power handling. Two powerful 4 inch voice-coil Italian woofers has been employed to deliver maximum low-frequency and detailed response over the complete usable frequency range. Woofer suspension has been specially designed for maximum linear excursion, incredible fatigue resistance and excellent long-term reliability. The drivers are reflex loaded by ports and substantial internal bracing is employed.



The ES28 is capable of reproducing superior sound quality and detail of the highest standards. Usable response extends to 28Hz to 250Hz.The ES28 can be used as stand-alone or ground stacking multiples for reproducing extremely high levels of sub frequencies. They are ideally suited for any type of line array system and perfect for concentrated bass reproduction for clubs.

Applications

  • Live Sound
  • Auditorium
  • Houses of Worship
  • Club sound
  • Various Installations

Technical Specification

TYPE Subwoofer
FREQUENCY RANGE 28Hz-250Hz
DRIVERS    LF 2  x 18 inch, reflex-loaded direct radiator
RATED POWER 2000W AES, 8000W peak
SENSITIVITY 101dB
MAXIMIUM SPL (CALCULATED @ IM) 128dB continuous, 134dB peak
NOMINAL IMPEDANCE LF: 4ohms
ENCLOSURE Rectangular , BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel Powder Coated, 16G .

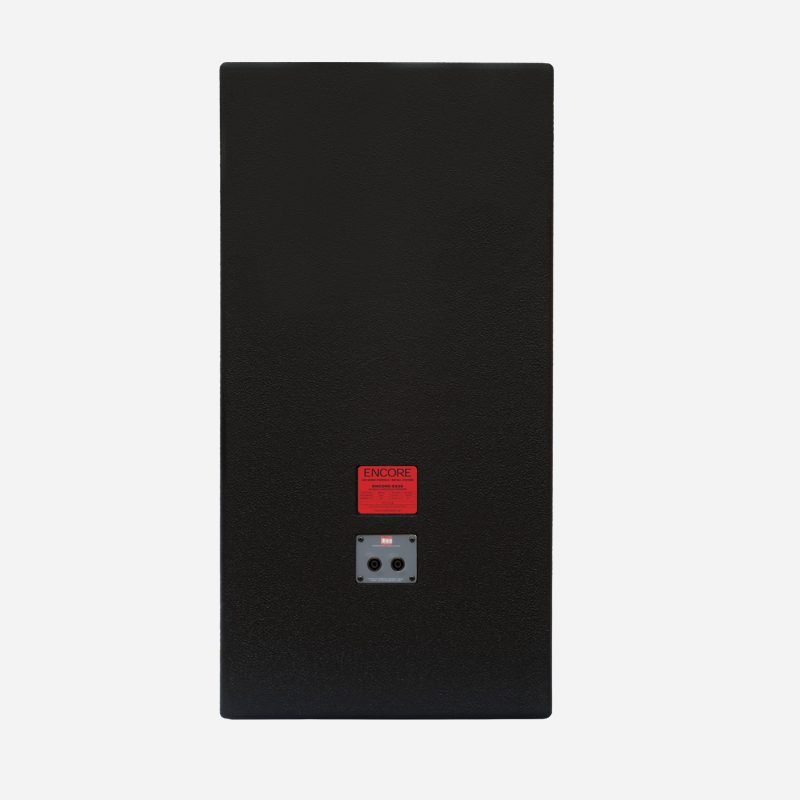

CONNECTORS 2 x Neutrik NL4
DIMENSIONS — mm x —- mm x — mm  ( W x H x D)
WEIGHT –kg
