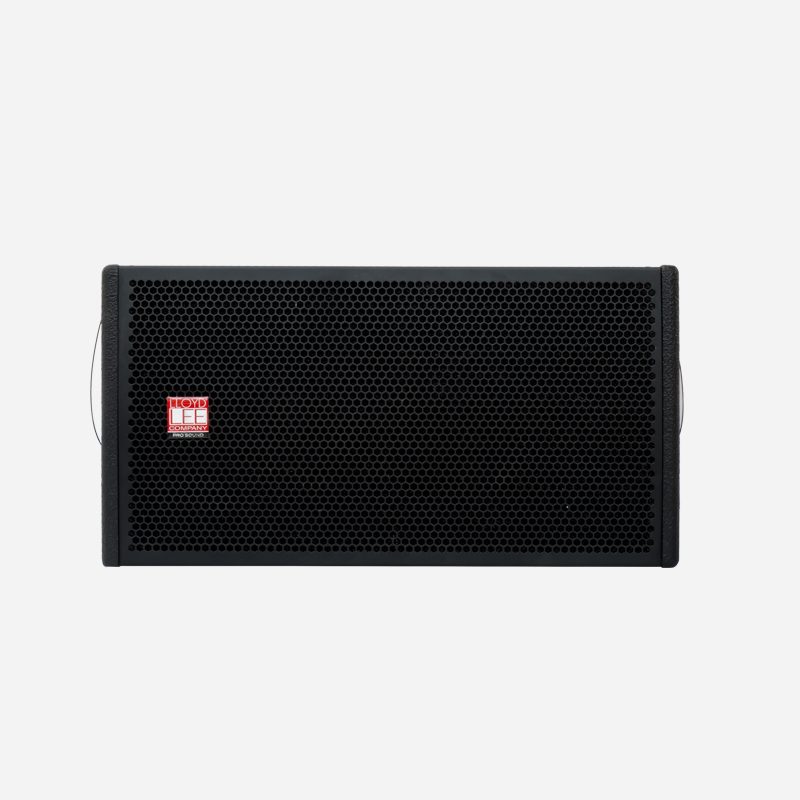

EDGE-X SERIES XLA 1

High Output 12-inch LF + 1×1.4-inch HF 2 Way Line Array Speaker System



Features

  • High performance two-way full-range constant curvature line array system.
  • Very high output coupled with clean and precise sound reproduction
  • Passive operation.
  • Italian (B&C) drivers for superior performance and durability
  • 12-inch 600W high performance woofer in bass reflex design
  • 1 x 1.4-inch compression driver, horn-loaded for power and performance
  • Wide bandwidth and Extended bass response
  • Wide coverage 110° horizontal
  • Fast, Integral, high-strength rigging system
  • Company pre-sets for a variety of applications.




The EDGE XLA 1 is a compact passive 2-way line array loudspeaker module passive speaker which integrates mid and high frequency transducers in a single unit. XLA 1 utilizes world class Italian drivers that provide optimum performance and features innovative line array technology within a compact, user friendly package.



Mid-bass frequency reproduction is handled by single 12-inch 700W (B&C) woofer in bass reflex configuration. This high power and high excursion 12-inch woofer has been specially built for the EDGE XLA 1 to ensure punchy low-frequency and superb mid frequency performance. For High frequencies 1 x 1.4 inch exit custom built B&C compression driver is mounted on to a high frequency plane wave converter. The resultant planer wave is then coupled to a proprietary high frequency horn to ensure, wide dispersion, precise high frequency coverage and even arraying in all situations.



As a two-way full-range system it can be utilized for reinforcing conferences and seminars as a standalone but for applications requiring low frequency reinforcement it may be combined with the EDGE X, XLS 18, XLS 28 and ELAN PRO LF1+ Pro subwoofers, extending the range to 28Hz.



The EDGE XLA 1 incorporates proprietary rigging systems on their sides for safe, easy and quick flying or stacking. simple connection of enclosures and optional array frame angle allows arrays of up to maximum of six enclosures to be flown. The XLA 1 trapezoidal shape and side located splay angle adjusters maintains the front spacing the same, providing the array with a continuous front baffle, for improved array performance.





Despite the compact size, XLA 1 arrays deliver both, exceptionally high output capability and predictable pattern control. The XLA 1 meets the need for a versatile, scalable system that can be flown or ground stacked for corporate events, theatres, indoor and outdoor venue applications, including portable and installed. It is also suitable as a delay system for large scale outdoor sound reinforcement. The enclosure size, shape, weight and rigging are optimized for ease of transport and handling.

Applications

  • Ideal for a wide range of portable and installed applications
  • Small to Medium scale sound reinforcement
  • Concert Halls, stadiums, auditoriums, Club sound
  • Delay systems for large scale outdoor sound reinforcement e.g. (EDGE XLA 5, XLA 7 & XLA 9)

Technical Specification

TYPE Two-way, compact line array element
FREQUENCY RANGE 50Hz-19kHz
DRIVERS   LF 1 x 12 inch woofer, reflex loaded
                     HF 1 x 1.4 inch exit HF compression driver, horn loaded
RATED POWER Passive: 700W AES, 2800W peak

LMF: 600W AES,2800W peak
HF: 80W AES, 480W peak

SENSITIVITY 101 dB
CROSSOVER 1.2 KHz passive
MAXIMIUM SPL (CALCULATED @ IM) 127dB continuous, 133dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6db) 110º horizontal x 12º vertical
ENCLOSURE Vertical trapezoid ,BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated Steel Powder Coated, 16G .
CONNECTORS 2 x Neutrik NL4
DIMENSIONS — mm x — mm x — mm  ( W x H x D)
WEIGHT — kg
