EDGE-X SERIES XLA 3

High Output 12-inch LF + 3×1-inch HF 2 Way Line Array Speaker System





Features

  • High performance two-way full-range line array system.
  • Very high output coupled with clean and precise sound reproduction
  • Passive operation.
  • Italian (B&C) drivers for superior performance and durability
  • 12 inch 700W high performance woofer in bass reflex
  • design
  • 3 x 1 inch compression driver, horn-loaded for
  • power and performance
  • Wide bandwidth and Extended bass response
  • Wide coverage 110° horizontal
  • Common grid may be used for flying or ground stacking
  • Fast, Integral, high-strength rigging system
  • Company presets for a variety of applications.





The EDGE XLA3 compact line array loudspeaker module is an externally powered 2-way passive speaker which integrates mid and high frequency transducers in a single unit. XLA3 utilizes world class Italian (B&C) drivers that provide optimum performance and features innovative line array technology within a compact, user friendly package.



Mid-bass frequency reproduction is handled by single 12 inch 700W woofer in bass reflex configuration. This high power and high excursion 12 inch woofer has been specially built for the XLA3 to ensure punchy low-frequency and superb mid frequency performance. For High frequencies 3 x 1 inch exit compression driver are mounted on to three individual high frequency plane wave converters. The resultant planer wave is then coupled to a proprietary high frequency horn to ensure, wide dispersion, precise high frequency coverage and even arraying in all situations.



As a two-way full-range system it can be utilized for reinforcing conferences and seminars as a standalone but for applications requiring low frequency reinforcement it may be combined with the EDGE-X XLS18, XLS28 and ELAN PRO LF1pro and LF3 pro subwoofers, extending the range to 28Hz.



The XLA3 incorporates proprietary rigging systems on their sides for safe, easy and quick flying or stacking. The physical angles can be preset for a wider coverage before flying the system; permissible angles are from 0° to 12°. The XLA3 trapezoidal shape and rear located splay angle adjusters maintains the front spacing the same, providing the array with a continuous front baffle, for  improved array performance.



Despite the compact size, XLA3 arrays deliver both, exceptionally high output capability and predictable pattern control. The Edge XLA3 meets the need for a versatile, scalable system that can be flown or ground stacked for corporate events, theatres, indoor and outdoor venue applications, including portable and installed. It is also suitable as a delay system for large scale outdoor sound reinforcement. The enclosure size, shape, weight and rigging are optimized for ease of transport and handling. Arrays may be easily flown or ground stacked

Applications

  • Ideal for a wide range of portable and installed applications
  • Small to Medium scale sound reinforcement
  • Concert Halls, stadiums, auditoriums, Club sound
  • Delay systems for large scale outdoor sound reinforcement e.g. (EDGE-X XLA5 & XLA7)



Technical Specification

TYPETwo-way, compact line array element
FREQUENCY RANGE50Hz-19kHz
DRIVERS   LF1 x 12-inch woofer, reflex loaded
                     HF3 x 1-inch exit HF compression drivers, horn loaded
RATED POWERPassive: 700W AES, 2800W peak

LMF: 700W AES,2800W peak
HF: 105W AES, 420W peak

SENSITIVITY101 dB
CROSSOVER1.2 KHz passive
MAXIMIUM SPL (CALCULATED @ IM)128dB continuous, 134dB peak
NOMINAL IMPEDANCE8 ohms
DISPERSION (-6db)110º horizontal x 12º vertical
ENCLOSUREVertical trapezoid, BWP ply construction
FINISHLloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLEPerforated Steel Powder Coated, 16G .

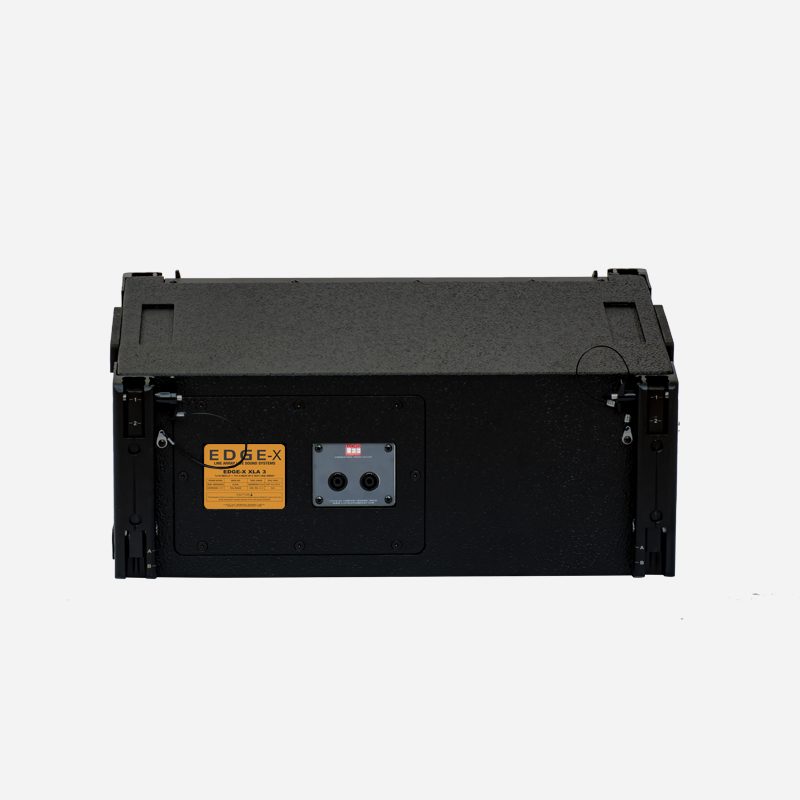

CONNECTORS2 x Neutrik NL4
DIMENSIONS694 mm x 330-242 mm x 449 mm  ( W x H x D)
WEIGHT (Approx)31 kg
