High Output 2x 14 Inch LF + 4x 7 Inch MF + 2x 1.4 Inch HF, 3 Way Line Array Speaker System



  • High performance three-way full-range line array system
  • Very high output coupled with clean and precise sound reproduction
  • All Neodymium Italian drivers for superior performance and durability
  • 2 x 14 inch high performance woofers in bass reflex design.
  • All new 4 x 7 inch reflex-loaded mid design
  • 2 x 1.4 inch Large format neo compression driver, horn-loaded for power and performance
  • 8 ohms low, mid and high frequency sections
  • Wide bandwidth, extended bass response
  • Wide coverage 90° horizontal
  • Fast, Integral, high-strength rigging system
  • Common grid may be used for flying or ground stacking
  • Company presets for a variety of applications


The EDGE-X XLA 9 is 3 way line array loudspeaker system designed to bring outstanding line array performance to live sound and a variety of installations. It meets the need for a powerful, scalable system that can be flown or ground stacked for wide range of events, indoor and outdoor. XLA 9 may be complemented by the EDGE-X  X48 or EXTREME R-ONE subwoofers for exceptional low frequency extension or may be used without subwoofers for certain applications


The XLA 9 is an externally powered, 3-way tri amplified line array module which integrates low, mid and high frequency transducers in a very compact design. Utilizing specially developed Italian drivers the XLA 9 ensures very high output and superb quality from a very compact and light weight enclosure.


Low frequency section employs dual 14 inch high excursion cone drivers mounted in bass reflex configuration to ensure powerful low frequency performance. Specially developed 7 inch mid drivers and 1.4 inch neodymium large format HF drivers are coupled to a phase corrected MF/HF section to ensure accurate summation, smooth frequency response, and precise horizontal dispersion throughout the MF/HF band. Dual 1.4 inch exit neodymium high performance compression drivers are mounted on to two individual high frequency plane wave converters. The resultant planer wave is then coupled to the high horn to ensure precise high frequency reproduction, and even arraying in all situations.


The XLA 9 incorporates proprietary rigging systems on their sides for safe, easy and quick flying or stacking. The physical angles can be preset for a wider coverage before flying the system; permissible angles are from 0° to 12°.  The XLA 9 can be flown or stacked in a variety of ways. The enclosure size, shape, weight and rigging are optimized for ease of transport and handling. Arrays may be easily flown or ground stacked. Despite the size, modules and arrays both deliver exceptionally high output capability and predictable pattern control.


  • Ideal for a wide range of portable and install applications
  • Medium to Large scale sound reinforcement
  • Concert Halls, stadiums and auditoriums.

Technical Specification

TYPE Three – way, line array element


2 x 14-inch Neo woofer, reflex loaded

4x 7-inch Neo midrange, reflex loaded

                     HF 2 x 1.4-inch exit HF large format Neo compression drivers, Horn loaded
RATED POWER LF: 2000W AES,8000W peak

MF: 1000W AES, 4000w peak
HF: 280W AES, 960W peak


MF: 108 dB

HF: 114 dB

MAXIMIUM SPL (CALCULATED @ IM) LF:134dB continuous, 140dB peak

MF: 138dB continuous, 142dB peak

HF: 142dB continuous, 148dB peak


LF2: 8ohms

MF: 8ohms

HF: 8ohms

DISPERSION (-6db) 90º horizontal x 10º vertical
ENCLOSURE Vertical trapezoid ,BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated Steel Powder Coated, 16G

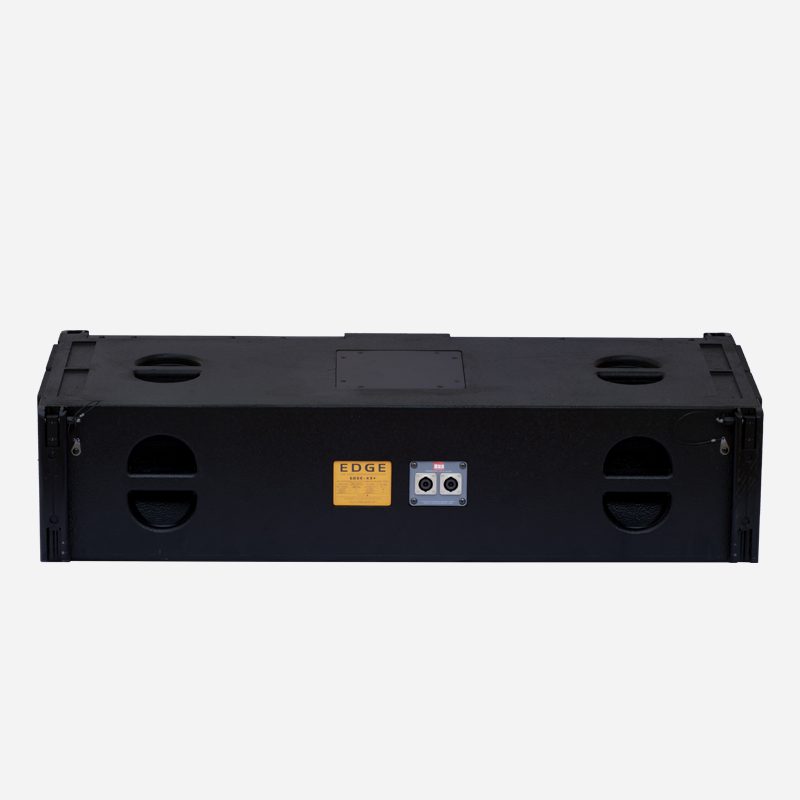

CONNECTORS 2 x Neutrik NL8
DIMENSIONS 1267 mm x 365 mm x 490 mm  ( W x H x D)
WEIGHT 49 kg
