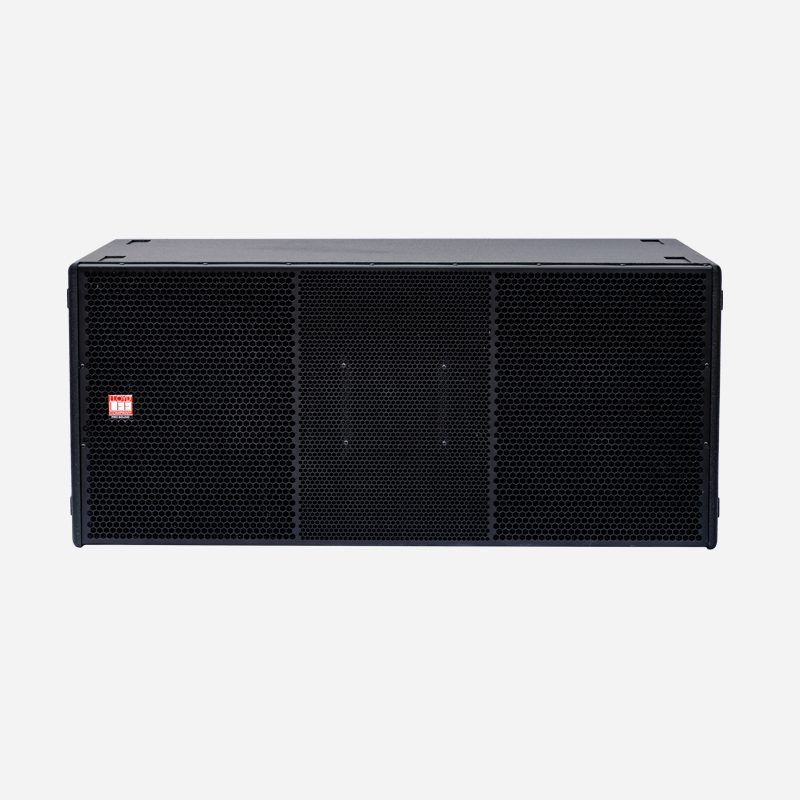

EDGE-X SERIES XLS 48

Very High Output 2x 18 Inch Subwoofer System



Features

  • New Direct radiating Vented LF enclosure, Deep bass down to 25Hz
  • 2 x 18 inch low distortion Italian LF transducers with weather protected cone and plates for outdoor use
  • Very High SPL coupled with clean and precise low frequency
  • 3600W AES, 14400W peak power handling
  • Extreme low frequency reproduction, Excellent Transient Response
  • Enclosure is Stackable in Both Horizontal and Vertical Orientations
  • Ideal for line array system




The EDGE-X  XLS 48 is the first in a series of extremely powerful and extreme low frequency direct radiating subwoofers from Lloyd Lee Company.



The XLS 48 can bring the house down by delivering intense, seismic bass, even in the largest of venues, clubs or outdoor applications where most subs just don’t stand-up. The XLS 48 is equipped with two18 inch 1800W state of the art woofers that bring bass reproduction closer to the ultimate experience. Woofer suspension has been specially designed for maximum linear excursion, incredible fatigue resistance and excellent long-term reliability. The drivers are reflex loaded by ports at centre of the enclosure and substantial internal bracing is employed.



The XLS 48 is capable of reproducing superior sound quality and detail of the highest standards. Usable response extends to 25Hz to 250Hz.The subwoofer can be used as stand-alone or ground stacking multiples for reproducing extremely high levels of sub frequencies. They are ideally suited for any type of line array system and perfect for concentrated bass reproduction for clubs.



The XLS 48 finds its application in both live and recorded music. Its capacity to reproduce very high levels of sub-low frequencies with extraordinary definition, makes it the most powerful and versatile sub in its category.

Applications

  • Very High power and extreme low frequency reproduction is required
  • Live sound
  • Clubs

Technical Specification

TYPE Bass Reflex Subwoofer
FREQUENCY RANGE 25Hz-250Hz
DRIVER    LF 2 x 18 inch, reflex-loaded direct radiator
RATED POWER 3600W AES, 14400W peak
SENSITIVITY 101dB
MAXIMIUM SPL (CALCULATED @ IM) 134dB continuous, 140dB peak
NOMINAL IMPEDANCE LF: 4 ohms
ENCLOSURE Rectangular, BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel Powder Coated, 16G .
CONNECTORS 2 x Neutrik NL4
DIMENSIONS 1240 mm x 538 mm x 808 mm  ( W x H x D)
WEIGHT — kg
