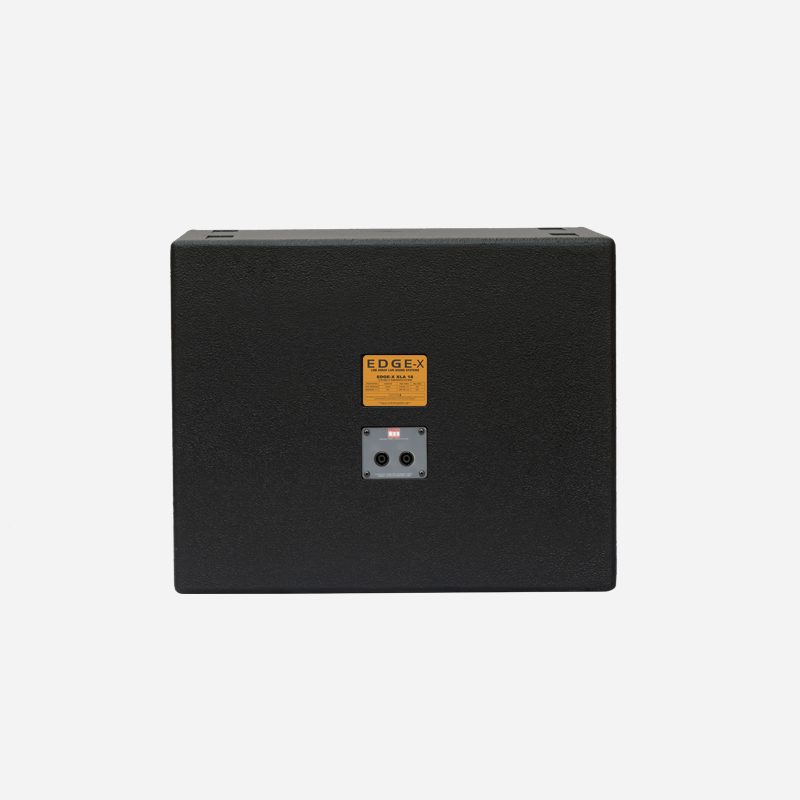

EDGE-X SERIES XLS 18

Compact High Output 18 Inch Subwoofer System





Features

  • New Very Compact and powerful design
  • 1200W AES, 4000W peak power handling
  • Extended low frequency reproduction, Excellent Transient Response
  • 18 inch Cutting edge technology Italian (B&C) woofer for maximum performance.
  • Enclosure is Stackable in Both Horizontal and Vertical Orientations
  • Direct radiating Vented LF enclosure, Solid bass down to
  • Pole mount to elevate a two-way loudspeaker




The EDGE-X XLS 18 is a new addition to the EDGE-X series of extreme low frequency subwoofers from Lloyd Lee Company.



The XLS 18 can deliver intense bass, in clubs or medium outdoor applications. The XLS 18 design provides excellent transient response, high efficiency and extreme low frequency reproduction. The Sub is equipped with an 18 inch 1200W state of the art 18 inch woofer that delivers high quality low frequency with excellent definition. The woofer’s rigid cones and massive ferrite magnetic structures in a “longthrow” design that assures linear movement and very high controlled excursion even at high power levels. Woofer suspension is specially designed for maximum linear excursion, incredible fatigue resistance and excellent long-term reliability.



The XLS 18 finds its application in both live and recorded music. Its capacity to reproduce very high levels of sub-low frequencies with extraordinary definition, makes it the most versatile sub in its category.

Applications

  • Live sound
  • Clubs
  • Auditorium
  • Club sound
  • Various Installations

Technical Specification

TYPE Subwoofer
FREQUENCY RANGE 25Hz-250Hz
DRIVER    LF 1  x 18 inch, reflex-loaded direct radiator
RATED POWER 1200W AES, 4000W peak
SENSITIVITY 98dB
MAXIMIUM SPL (CALCULATED @ IM) 127dB continuous, 133dB peak
NOMINAL IMPEDANCE LF: 8 ohms
ENCLOSURE Rectangular , BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel Powder Coated, 16G .
CONNECTORS 2 x Neutrik NL4
DIMENSIONS 685 mm x 555 mm x 578 mm  ( W x H x D)
WEIGHT — kg
