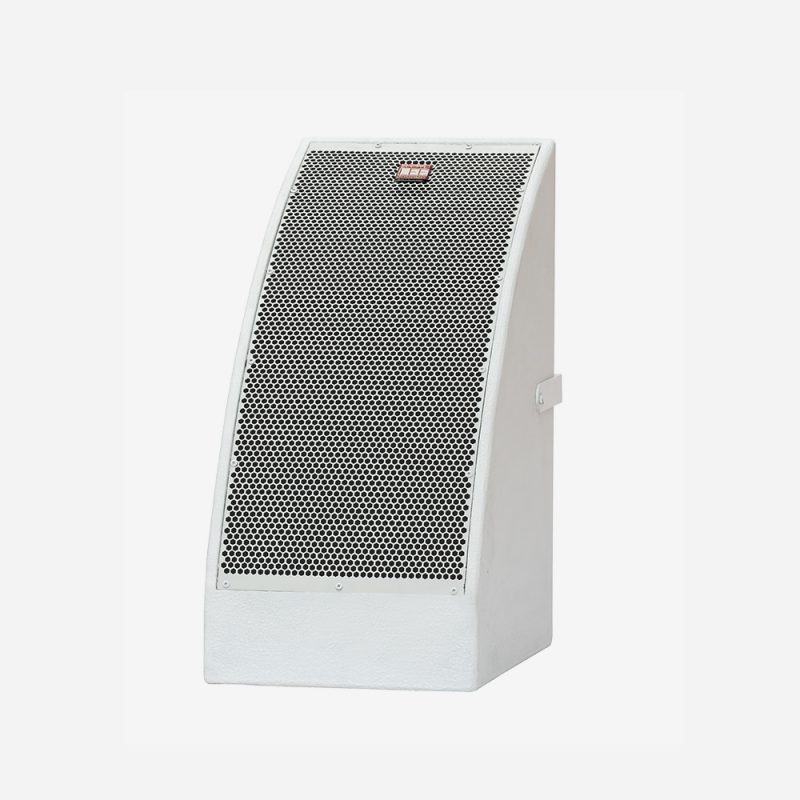

ENCORE SERIES Ei 12

High Output Compact 12 Inch LF + 1 Inch HF 2 Way Full-Range Loudspeaker

Features

  • Two-Way High-Output Full-range
  • Italian 1-inch exit HF compression driver
  • Italian 12-inch LF transducer with weather protected cone and plates for outdoor use
  • Advanced crossover with HF protection
  • Variable Intensity horn for even coverage
  • 400W continuous, 1600W peak power handling
  • Integral M8 threaded points for suspension
  • Vented LF enclosure



Category:

The ENCORE EI12 is unique loudspeaker designed for main system applications for auditoriums and houses of worship. Employing an incredibly low-distortion Italian 12-inch woofer, the EI12 will astound you with performance that blows away ordinary 12-inch speakers. A specially designed crossover network integrates the speaker with an Italian 1-inch pure titanium HF compression driver. The driver is coupled to asymmetrical horn for precise and even coverage depending on application. HF overload protection is provided for reliable, long term operation.



ENCORE EI 12 offers excellent Speech intelligibility is crucial spaces that can be highly diverse in layout and scale, as well as in many heritage settings, highly reverberant. The EI 12 is an ideal solution for venues that need maximum quality and coverage without any aesthetic compromise.

Applications

  • Auditorium
  • Houses of Worship
  • Various Installations

Technical Specification

TYPETwo-way compact/monitor (full-range)
FREQUENCY RANGE50Hz-19kHz
DRIVERS    LF1  x 12inch reflex-loaded direct radiator
                    HF1 x 1 inch exit HF compression driver horn loaded
RATED POWER400W AES, 1600W peak
SENSITIVITY98dB
MAXIMIUM SPL (CALCULATED @ IM)119dB continuous, 125dB peak
NOMINAL IMPEDANCE8ohms
DISPERSION (-6db)Variable
CROSSOVER1.6kHz passive
ENCLOSUREBWP ply construction
FINISHLloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLEPerforated Steel Powder Coated, 16G .
CONNECTORS2 x Neutrik NL4
DIMENSIONS— mm x — mm x — mm  ( W x H x D)
WEIGHT21 Kg
