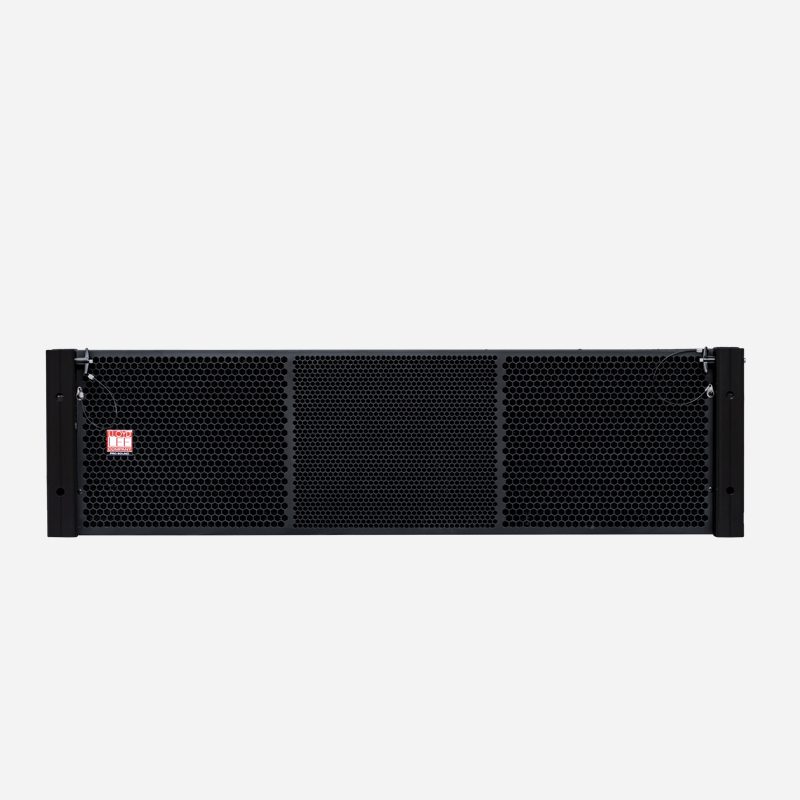

EDGE-X SERIES XLA 7

High Output 2x 12 Inch LF + 2x 8 Inch MF + 2x 1.4 Inch HF, 3 Way Line Array System



Features

  • High performance three-way full-range line array system
  • Very high output coupled with clean and precise sound reproduction
  • Italian drivers for superior performance and durability
  • 2 x 12inch high performance woofers in bass reflex design.
  • All new 2 x 8 inch slot-loaded mid design
  • 2 x 1.4 inch neo compression driver, horn-loaded for power and performance
  • 16 ohms low, mid and high frequency sections
  • Wide bandwidth, Extended bass response
  • Wide coverage 110° horizontal
  • Fast, Integral, high-strength rigging system
  • Common grid may be used for flying or ground stacking
  • Company presets for a variety of applications




The EDGE-X XLA 7 is 3 way line array loudspeaker system designed to bring outstanding line array performance to live sound and a variety of installations. Though compact in size, the EDGE X7+ is a full-bandwidth system and may be used without subwoofers for certain applications. It meets

the need for a versatile, scalable system that can be flown or ground stacked for wide range of events, indoor and outdoor. XLA 7’s may be complemented by the EDGE-X  XLS 48, ELAN PRO LF7 PRO, LF9 PRO or EXTREME R ONE subwoofers for exceptional low frequency extension.



The XLA 7 is an externally powered, 3-way tri amplified line array module which integrates low, mid and high frequency transducers in a very compact design. Utilizing new horn loaded techniques and specially developed Eighteen Sound drivers the XLA 7 ensures very high output and superb quality from a very compact enclosure size.



Low frequency section employs dual 12 inch high excursion cone drivers mounted in bass reflex configuration to ensure powerful low frequency performance. Specially developed pairs of 8 inch mid drivers and 1.4 inch neodymium HF drivers are coupled to a large proprietary phase corrected MF/HF horn to ensure accurate summation, smooth frequency response, and precise horizontal dispersion throughout the MF/HF band. Dual 1.4 inch exit neodymium high performance compression drivers are mounted on to two individual high frequency plane wave converters. The resultant planer wave is then coupled to the complex mid-high horn to ensure precise high frequency reproduction, and even arraying in all situations.



The XLA 7 incorporates proprietary rigging systems on their sides for safe, easy and quick flying or stacking. The physical angles can be preset for a wider coverage before flying the system; permissible angles are from 0° to 12°. The XLA 7 trapezoidal shape and rear located splay angle adjusters maintains the front spacing the same, providing the array with a continuous front baffle, for improved array performance.



Despite the compact size, modules and arrays both deliver exceptionally high output capability and predictable pattern control. The XLA 7 can be flown or stacked in a variety of ways. The enclosure size, shape, weight and rigging are optimized for ease of transport and handling. Arrays may be easily flown or ground stacked.

Applications

  • Ideal for a wide range of portable and installed applications
  • Medium to Large scale live sound reinforcement
  • Concert Halls, stadiums and auditoriums.

Technical Specification

TYPE Three – way, line array element
FREQUENCY RANGE 55Hz-18kHz
DRIVERS   LF

MF

2 x 12 inch woofer, reflex loaded

2x 8 inch midrange, horn loaded

                     HF 2 x 1.4 inch exit HF compression drivers, horn loaded
RATED POWER LF: 1200W AES,4800W peak

MF: 500W AES, 2000w peak
HF: 200W AES, 720W peak

SENSITIVITY LF: 102 dB

MF: 105 dB

HF: 112 dB

MAXIMIUM SPL (CALCULATED @ IM) LF:126dB continuous, 133dB peak

MF: 134dB continuous, 140dB peak

HF: 139dB continuous, 145dB peak

NOMINAL IMPEDANCE LF1:16 ohms

LF2: 16 ohms

MF: 16 ohms

HF: 16 ohms

DISPERSION (-6db) 110º horizontal x 12º vertical
ENCLOSURE Vertical trapezoid ,BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated Steel Powder Coated, 16G .

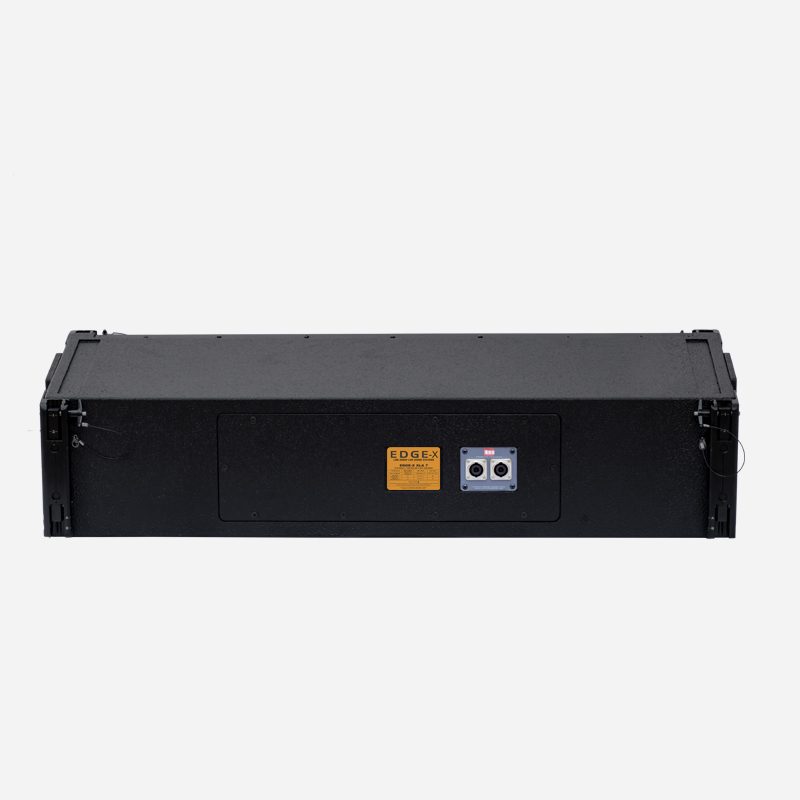

CONNECTORS 2 x Neutrik NL8
DIMENSIONS 1230 mm x 330 mm x 449 mm  ( W x H x D)
WEIGHT  54 kg
