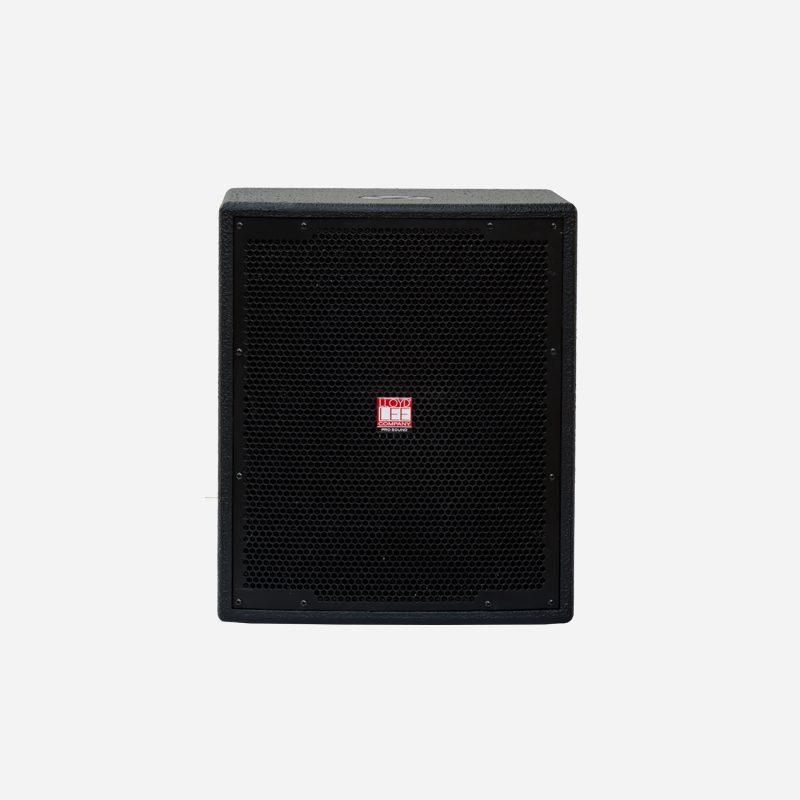

ENCORE SERIES ES15

Compact High Output 15-inch Subwoofer



Features
• Very Compact design
• 600W continuous, 2400W peak power handling
• Direct radiating Vented LF enclosure, Solid bass down to 35Hz.
• 15 inch low distortion Italian LF transducer with weather protected cone and plates for outdoor use.
• Pole mount to elevate a two-way loudspeaker



Category:

The ENCORE ES15 is a compact yet powerful single 15 inch Subwoofer designed to complement the full range products in the ENCORE series.



The ES15 employs a powerful 15 inch 600W continuous power handling woofer. Reflex loaded woofer orientation has been used to ensure excellent low frequency performance for a very compact enclosure. The ES15 has been specifically designed for applications where size and weight are an important factor. The enclosure is equipped with 1-3/8 inch stand mount on the top for use with full range cabinets, without the need for extra mounting stands.



The ES15 is the perfect companion sub to the EM12 and EM15 for compact and portable performance. The ES15 is capable of delivering outstanding power and an extended response down to 35Hz. When used with the ENCORE full-range speaker systems, the subwoofer provides high output sound reinforcement for clubs, large halls, or outdoor events in a compact package which can be moved easily by a one-person crew.

Applications

  • Live Sound
  • Auditorium
  • Houses of Worship
  • Club sound
  • Various Installations

Technical Specification

TYPE Subwoofer
FREQUENCY RANGE 35Hz-120Hz
DRIVER    LF 1 x 15 inch, reflex-loaded direct radiator
RATED POWER 600W AES, 600W peak
SENSITIVITY 98dB
MAXIMIUM SPL (CALCULATED @ IM) 120dB continuous, 126dB peak
NOMINAL IMPEDANCE LF: 8ohms
ENCLOSURE Rectangular , BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel Powder Coated, 16G .

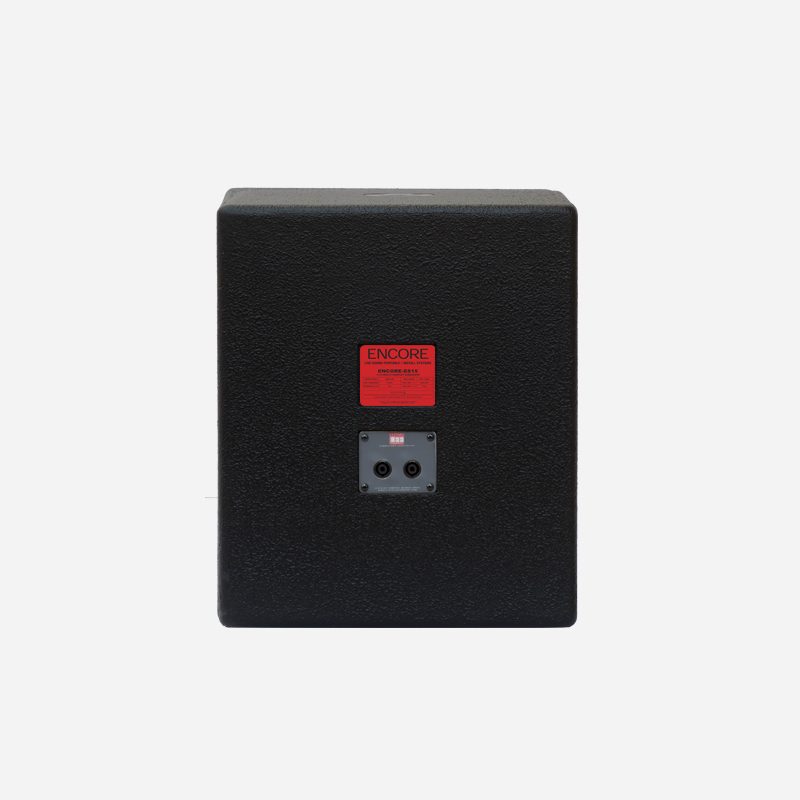

CONNECTORS 2 x Neutrik NL4
DIMENSIONS — mm x — mm x — mm  ( W x H x D)
WEIGHT — Kg

Download
